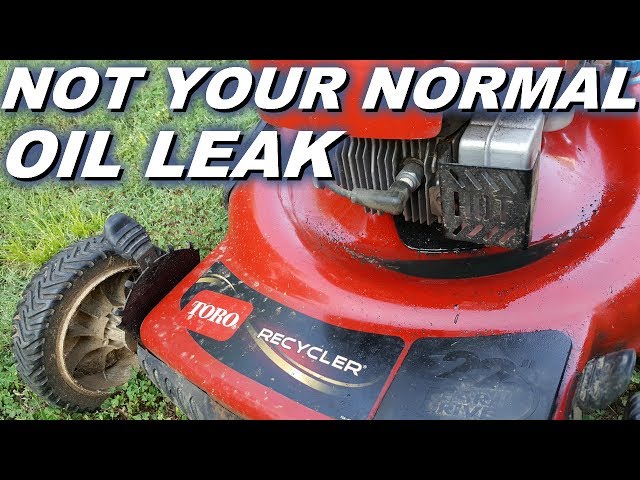

A lawn mower leaking oil from bottom often has a loose seal, drain plug, or overfilled crankcase.
A lawn mower leaking oil from bottom can look like a major engine failure, but many leaks come from simple, repairable problems. The key is to stop using the mower, find the oil’s highest wet point, and check the common leak areas first. This guide explains the causes, safe checks, repair options, and signs that you need professional help.
What to Do When Your Lawn Mower Is Leaking Oil
When you notice a lawn mower leaking oil from bottom, turn the engine off at once. Oil loss can damage the engine, create smoke, and increase the risk of fire if it reaches hot parts.
Follow these steps before troubleshooting:
- Move the mower onto a flat, hard surface.
- Let the engine cool for at least 15 to 30 minutes.
- Disconnect the spark plug wire and keep it away from the plug.
- Remove grass and dirt from the underside.
- Place cardboard under the mower to track fresh oil.
- Check the oil level with the mower in its normal upright position.
Do not tip a gas mower with the air filter or carburetor facing down. Oil can flow into the air filter, carburetor, or cylinder. This may make the engine hard to start or cause white or blue smoke.
A small oil spot does not always mean the engine is ruined. It may come from a drain plug, dipstick tube, gasket, or crankshaft seal. Still, do not run the mower until you know where the oil comes from.
Common Causes of Oil Leaking From the Bottom
A lawn mower leaking oil from bottom usually has a leak near the crankcase, blade shaft, or oil drain point. The exact cause depends on the mower type, engine design, age, and recent maintenance.
Loose or damaged oil drain plug
Many push mowers have a drain plug near the bottom or side of the engine. The plug may loosen from vibration. Its sealing washer can also wear out or become damaged.
Clean the area first. Then check whether oil forms around the plug. Tighten it only to the torque listed in the owner’s manual. Overtightening can strip the threads or crack the crankcase.
Worn drain plug washer
Some drain plugs use a small metal, rubber, or fiber washer. This washer seals the gap between the plug and the engine case. Once crushed or worn, it may leak even when the plug feels tight.
Replacing the washer is often a low-cost fix. Use the correct size and material for your engine. Do not rely on pipe tape unless the manufacturer specifically allows it.
Overfilled engine oil
Too much oil can force oil past seals and gaskets. It can also cause foaming, smoke, poor running, and pressure inside the crankcase.
Check the dipstick on level ground. Most dipsticks should be inserted fully before reading, but some models use a different method. Follow the instructions for your exact engine.
If the level is above the full mark, drain the extra oil into an approved container. Never pour used oil onto soil, into a storm drain, or into household trash.
Damaged crankcase gasket
The crankcase gasket sits between engine parts and helps hold oil inside. A damaged gasket may cause a wet line along the lower engine housing.
This repair can require removing the blade, pulley, or engine cover. A gasket leak is more involved than a loose drain plug. If the case must be split, many homeowners save time by using a small-engine repair shop.
Worn crankshaft seal
The crankshaft seal surrounds the shaft that turns the mower blade. When this seal wears out, oil may appear around the blade adapter or beneath the engine.
A lawn mower leaking oil from bottom may have a crankshaft seal problem if oil spreads outward while the engine runs. The leak can become worse when the blade spins.
Replacing this seal usually requires removing the blade and sometimes the engine from the deck. Always follow the manufacturer’s repair steps. A poorly installed seal may leak again or allow dirt into the engine.
Loose oil fill tube or dipstick seal
Some engines use a fill tube that enters the crankcase. A loose tube, cracked tube, or failed O-ring can let oil run down the engine and collect underneath.
Oil often travels before it drips. This makes the bottom look like the source even when the leak starts higher up. Wipe the engine clean and inspect it after a short test run, if the oil level is safe and the mower is otherwise secure.
Tilted mower or wrong storage position
Storing a mower on its side can move oil into places where it should not go. This is common after cleaning, transporting, or working under the deck.
Check the owner’s manual for the correct side to lift. Many manufacturers advise tipping the mower with the carburetor and air filter facing upward. Some recommend removing fuel first.
Cracked crankcase or engine housing
Impact from a rock, curb, or hard object can crack the lower engine case. A crack may also result from severe corrosion or freezing water.
A cracked crankcase is not a safe temporary-fix situation. Stop using the mower and have the engine inspected. Sealants may slow a leak, but they are not a dependable repair for a structural crack.
How to Find the Exact Leak
Finding the source is easier when you clean the engine first. Old oil, wet grass, and dust can create a false trail.
Use this simple method:
- Remove the spark plug wire.
- Wipe the engine base and underside with a shop towel.
- Use a mild degreaser if needed.
- Let the area dry fully.
- Add the correct oil if the level is low.
- Watch for fresh oil around the drain plug, gasket, shaft, or fill tube.
A flashlight helps. Look for the highest fresh, shiny spot. Oil moves downward because of gravity, so the first drip is not always the true source.
For a slow leak, place clean cardboard under the mower overnight. Mark the location of each drop. This can show whether oil comes from the center, blade shaft, side of the engine, or drain plug.
Do not use your fingers near a running blade or belt. If you must inspect the mower while it runs, keep hands, clothing, tools, and hair away from moving parts. In most cases, it is safer to shut the engine off and inspect between short checks.
Can You Still Use a Mower That Leaks Oil?
You should not use a mower that is actively leaking oil. Continued operation can lower the oil level below the safe range. Even a small engine can suffer serious damage when its moving parts lose lubrication.
Stop immediately if you notice:
• A steady stream or puddle of oil
• Blue or white smoke from the engine
• A strong burning-oil smell
• Loud knocking or ticking
• An oil level below the safe mark
• Oil spraying near the blade or exhaust
• An engine that suddenly runs rough
A few drops left after maintenance may be leftover oil rather than an active leak. Clean the mower, check the oil level, and observe it again after storage. If fresh oil returns, treat it as a real leak.
Oil on the deck can also make grass clippings stick. This creates a thick buildup that traps moisture and may hide other problems. Clean the deck only with the engine off, the spark plug wire disconnected, and the fuel system handled safely.
How to Repair a Lawn Mower Oil Leak
The right repair depends on the source. Simple external parts can often be replaced by a careful homeowner. Internal engine repairs may need special tools and experience.
Fixing a drain plug leak
Drain the oil into a suitable container. Remove the plug and inspect the threads and sealing washer. Replace damaged parts, clean the mating surfaces, and reinstall the plug to the maker’s specification.
Do not guess at the tightness. Too loose causes leaks, while too tight can damage expensive engine parts.
Replacing a crankshaft seal
A crankshaft seal repair often involves these steps:
- Remove the spark plug wire.
- Remove the blade and blade adapter.
- Remove any pulley or belt parts in the way.
- Access the seal around the crankshaft.
- Remove the old seal without scratching the shaft.
- Lubricate and install the new seal evenly.
- Reassemble the parts in the correct order.
- Refill the engine with the specified oil.
The blade must be installed correctly and tightened properly. A loose blade is dangerous. If the shaft is bent, scratched, or worn, replacing only the seal may not solve the problem.
Replacing a gasket
A gasket repair requires clean, flat surfaces. Remove all old gasket material without gouging the aluminum case. Use only the gasket or sealant approved for that engine.
Avoid using excessive sealant. Extra material can squeeze into the crankcase and block oil passages. The owner’s manual or engine service guide should control the repair method.
Correcting an overfilled crankcase
Drain enough oil to bring the level to the correct mark. Do not try to burn off extra oil by running the engine. Excess oil can enter the air filter or combustion chamber.
After correcting the level, clean the mower and check for continued leakage. If oil still appears, the overfill may have exposed a weak seal or gasket.
Oil Type, Oil Level, and Maintenance Tips
Using the correct oil helps protect the engine, but it cannot repair a damaged seal. Most small engines use a specified viscosity based on temperature and engine design. Common choices include SAE 30 and 10W-30, but the correct type varies by model.
Always check the manual for:
• Oil type and viscosity
• Oil capacity
• Drain plug location
• Dipstick reading method
• Service intervals
• Correct mower storage position
Change engine oil at the interval listed by the manufacturer. Many small-engine makers suggest an initial change after the first several hours on a new engine, followed by regular seasonal service. The exact schedule varies, so the manual is the best guide.
Before mowing, check the oil level on a flat surface. Inspect for wet spots near the engine base. Keep the underside free from packed grass, since buildup can hide a leak and hold moisture against metal parts.
One lesson that comes up often in mower repair is that “full” does not mean “better.” A customer once added oil several times because the dipstick reading looked low while the mower sat on a slope. On level ground, the engine was overfilled. Checking on a flat surface would have prevented the leak, smoke, and extra repair work.
Safety and Environmental Precautions
Engine oil is a skin and eye irritant. Wear gloves and safety glasses when draining oil or cleaning the underside. Wash your hands after working on the mower, even if you used gloves.
Gasoline and oil create a fire risk. Work outdoors or in a well-ventilated area. Keep the mower away from cigarettes, sparks, pilot lights, and hot surfaces.
Follow these safety rules:
• Disconnect the spark plug wire before underside work.
• Remove the battery cable on electric-start models when appropriate.
• Do not work near a hot muffler.
• Support the mower securely if it must be lifted.
• Never rely on a weak jack or unstable blocks.
• Keep children and pets away from the work area.
• Store used oil in a sealed, labeled container.
Take used oil to an auto parts store, recycling center, service station, or household hazardous-waste program that accepts it. Used oil can pollute soil and water, so proper disposal matters.
When to Call a Small-Engine Professional
Call a repair professional when the leak comes from inside the engine, the crankcase is cracked, or the crankshaft is damaged. Professional help is also wise if you lack the tools to remove the blade safely.
A technician can use a pressure test, cleaning process, and careful inspection to locate a hidden leak. This may cost more than a do-it-yourself repair, but it can prevent incorrect parts, stripped threads, and unsafe reassembly.
Repair may not be economical when the mower has several major problems. Consider the mower’s age, deck condition, engine noise, starting behavior, and replacement cost. A leaking seal on a strong engine may be worth fixing, while a cracked case and worn deck may point toward replacement.
Frequently Asked Questions About a Lawn Mower Leaking Oil From Bottom
Why is my lawn mower leaking oil from the bottom?
Common causes include a loose drain plug, damaged washer, overfilled crankcase, worn crankshaft seal, or failed gasket. Clean the engine and locate the highest fresh oil mark before choosing a repair.
Is it safe to run a lawn mower that is leaking oil?
No, not if the leak is active or the oil level is low. Running the mower can cause severe engine damage and may allow oil to reach the hot muffler or other ignition sources.
Can too much oil make a lawn mower leak?
Yes. An overfilled crankcase can force oil past seals and gaskets, cause smoke, and push oil into the air filter or cylinder. Drain the excess until the level matches the manufacturer’s mark.
How do I tell if the crankshaft seal is leaking?
Oil around the blade adapter or crankshaft area often points to a worn crankshaft seal. Remove grass and old oil, then watch for fresh oil at the shaft after a brief, safe inspection.
Can I fix a lawn mower oil leak with sealant?
Sealant may work for a specific approved gasket repair, but it is not a dependable fix for a worn shaft seal or cracked crankcase. Use the repair method and parts recommended for your engine model.
Why does my mower leak oil after I tip it over?
Tipping can move oil into the air filter, carburetor, breather, or cylinder. Place the mower upright, check the oil level, inspect the air filter, and follow the manufacturer’s instructions for cleaning and restarting it.
Conclusion
A lawn mower leaking oil from bottom is often caused by a loose drain plug, worn washer, overfilled engine, damaged gasket, or crankshaft seal. Stop the mower, disconnect the spark plug wire, clean the engine, and trace the leak from the highest fresh oil mark.
Small repairs may be manageable at home, but cracked cases, internal leaks, and damaged crankshafts need professional attention. Use the correct oil, check the level on flat ground, and dispose of used oil responsibly. If this guide helped, share your mower model and leak location in the comments or explore your manufacturer’s service resources for the next repair step.
